Introducing you to my blog to help others with tips on how to fix and renovate damp areas in caravans that maybe letting water get into places they shouldn't.
My name is Kevin and I have renovated the damp in the little caravan that my partner Craig and I owned so that it could continue to live on, giving us the opportunity to have many happy holidays making memories.
This was a blog I added to over time starting it in April 2015. The caravan is now complete and the damp fully renovated.
We owned this caravan from September 2014 for until October 2025 when we sold it. 11 years of ownership was great. It took me 2 years to fix it, but that was only due to the nature of my job at the time that took me out the country quite often, so not much free time at home for me to fix it when of course it wasn’t cold and raining.
In October 2025 we put it up For Sale as we had bought a bigger and newer caravan. It sold in less than a week to a lovely lady called Sue who has plans to have caravan holidays with her family.
Happy Caravanning with “Eileen the Elddis”!
🚙🚐💨
-----------------------------------------------------------------
Blog of repairs starts below :
Caravan Purchase.......
Bought in September 2014 with known damp and water ingress issues in various parts of the caravan but mainly at the front windows due to cracks in the front ABS plastic panel.
We initially named her "Elsie" the Elddis, but later we renamed her "Eileen the Elddis" after my maternal Nan who passed away in 2017).
This was our caravan when we bought her from the first owner who was a family friend called Monica who was in her late 70's. It hadn't been moved for many years. It was such a cute small thing and only weighed 730kgs when totally empty, so almost every car would be able to tow it, even my little car which is an automatic Honda Jazz from 2006.
Even with the damp, strangely it still smelt brand new and clean inside even though she was exactly 20 years old at the time we bought it, so I knew deep down it was well worth saving.
It was a mess when we went to go and buy it. Green algae all over as it hadn't been used for about 5 years or so due to Monica's husband Mani who passed away. It had not been used since his passing, apart from her grandchildren sleeping in it at her home when visiting her. Luckily the owner was selling it together with everything to go with the caravan that was needed; eg. awning, cutlery, saucepans, bedding, hitch style motormover, gas bottles, anquaroll, wastemaster etc. Also a caravan cover, which obviously hadn't been put on the caravan for many years which is a real shame. This picture is the day we went to visit it with a view to buying it. All green and unloved.
We washed and cleaned it. It cleaned up very well considering the state it was in. We used a high pressure hose which you're not really supposed to do on caravans, but the green algae wouldn't even come off with a sponge and soap, so a high pressure hose was the only way we could clean it.
We also had to put a new set of tyres on it before we drove it the very short distance of 1 mile home from Monica's house, as the tyres were very old. In fact one of the old tyres burst trying to move the caravan by hand on her driveway. Oh we did laugh 🤣 so much about that as it scared the three of us to death with the big bang when it exploded. This just proves the need for replacing old tyres on all vehicles for safety.
We opted to purchase commercial van tyres for the caravan as they are stronger and safer.
The damp was because of cracks like this in the front panel.
Here is a crack closer up. As you can see it's pretty big. Almost half a centimetre across.
The nightmare begins, I started taking the front window area apart where all the damp wood was. Well luckily the rotten front wood was less worse than what I thought. It was literally only the front frame around the windows and both the shelves above and below the window.
You can see the rotten area between the right and middle window.
These are the two metal rails above the front windows that needed to be taken off in order to remove the wooden frame from the inside. The upper one in the picture joins the aluminium roof to the front ABS plastic panel. The lower one holds the hinge for the three front windows. Both have sets of screws that screw into the front window frame.
The side on the right is OK but the wood still needed replacing.
The left side isn't too bad either, however I still replaced the wood.
Now my garage looks like a crime scene from an arson! Positioning all the wood out as a plan to make a new wooden frame.
The cracks in the ABS plastic front panel.......
Some newer caravans have the front panel made of fibreglass and that will require a different fix to this blog as those will need fixing with resin and fibreglass matting.
After taking all the wood away from behind the front "ABS plastic front panel", the crack can clearly be seen.
Behind the largest crack.
I found another crack but it was a bit smaller.
These are the front struts of the frame between the front windows. They are made form thin aluminium covering the wood behind and covered in matt black vinyl, and of course water got behind it and ruined them.
This is the top of them.
This is the bottom of them.
Making the "ABS plastic glue".......
My next job was to repair these cracks and also reinforce the front window frame area of the front panel using the "ABS Acetone" method to make "ABS Plastic Glue".
I made the ABS glue in order to fix the crack in the caravan ABS plastic front panel. I made it with some small bits of a cut off from a small waste pipe and put it in a glass jar and covered it in acetone. I bought the acetone from a woman's nail and hair shop. You need the clear acetone, not the coloured ones.
I left cut up pieces of ABS household bathroom sink waste pipe in a glass jar soaking in acetone ready to fix this. (The plastic turns liquid and thick making a glue).
As you can see on this 40mm waste pipe it says ABS clearly written, "Pipe Building Products Ltd. 40mm ABS.
This is the fantastic stuff that makes the ABS plastic into your own glue!
This is after leaving the cut up white ABS plastic pipe soaking in acetone for 24 hours
I also bought a few bits of ABS plastic from some plastic manufacturers. The small piece here is pure white. The A4 sheet is an off-white colour which I am very pleased to say almost matches the colour of the front panel of my caravan. Well it matches better than the white. It would be almost impossible to get a correct match. However, I would of course prefer the crack to be repaired rather than worry about the plastic colour being matched.
I left some cut up bits of this off-white ABS plastic in a glass jar overnight too in order to fill the crack from the outside of the van so there is a good colour match. This will be of course after I reinforced the back with part of the smaller white piece for strength.
When I finished fixing all the front panel repairs of all the cracks, I found a few more than the two I had pictures of. I also opted to reinforce the entire whole of the surround of the windows of the front panel as I really didn’t want to have to take it all apart again should another crack appear in the future. I thought that more time and effort spent doing it will save me time later. I took the time to reinforce it all, hoping that cracks won't appear ever again because of this. All this effort will pay off preventing it getting any further future cracks.
Using the ABS waste pipe was better than buying bits of A4 ABS plastic as I couldn't find a local company to buy them from and didn't know how much I needed. I decided to do the entire window surround because otherwise some areas of it would be different thickness and I imagined that this would cause me problems at a later date.
Here is a close up of the inside where the huge crack was. It's behind that left square.
It looks a bit of a mess of a repair but there is no need for it to look pretty. It's all there to totally fix and reinforce the window frame part of the front panel.
I used squares and rectangles of 3mm ABS plastic. I made these from the same white ABS waste pipe that I made the glue from. I cut lengths of the pipe and then cut it once to open the pipe, and then melted it open and flat using a heat gun. I made it progressively flatter by continually using the heat gun gently and flattening it on the concrete floor of my garage with a large chunk of wood. A long process, however it was totally worth it as a 3 metre length of this pipe was £5, and a sheet of ABS was very expensive and I could only find it from suppliers in a sheet of 8ftX4ft which was far too much. Also, any local firm wouldn't sell me a smaller sheet or indeed sell me any off cuts. Also a number of companies said they charge a minimum of £50 for any offcuts, so I never bothered.
I smeared my home made "ABS acetone glue" all over these little ABS repair/reinforcement panels and stuck it to the inside of the front panel. Then when that had dried, I smeared the same ABS glue all over the joints for extra reinforcement. The front panel is also 3mm, so now it's obviously thicker and as a result more firm and robust.
One piece of advice with this is that you must use small repair panels. I used one that was about 30cm wide and 10cm high, and it took a short while to smear the repair panel with the ABS glue. As a result, when I pushed it onto the back of the front panel, the part I first started smearing the glue onto wouldn't stick to the font panel as it had dried off a bit too much. However I quickly recovered it by going outside the caravan and pouring neat Acetone over the glue on the repair panel which seemed to reactivate or melt the glue again and it stuck well. I made all the other repair panels smaller after this minor mishap.
Here is the inside of the opposite side where the smaller crack was.
Here is the repaired front panel large crack from the outside. I sanded the area flat with a hand held sanding machine, but there were a few tiny areas not perfectly filled with the ABS Glue, so I put a bit more on to fill these holes. I had to sand it again slightly to make it totally smooth.
Here is the crack closer up in the centre of the picture.

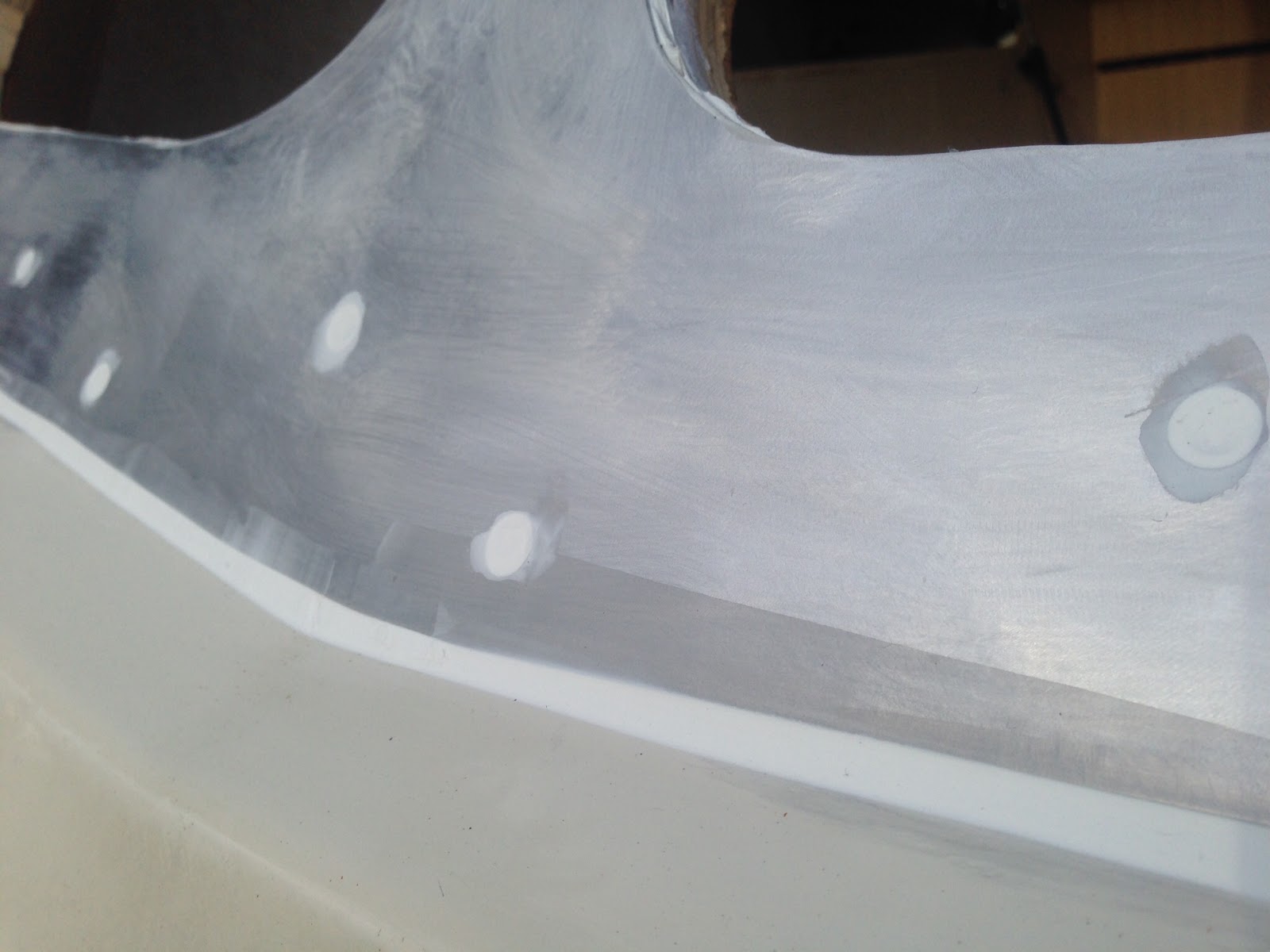

As you can just about see in the picture above I drilled a set of holes each side of the crack, about half and inch and one inch away. I did this in order to extra reinforce the repair. I also countersunk these holes on both sides of the hole and I did this because I wanted it to be a bit like a plastic rivet so it's really strong. Basically so the plastic couldn't come out of the hole as the countersinking means the plastic on the outside is larger than the hole so it can't slip out.
I will need to sand the front panel again in the above picture in order for it to be totally smooth. I am not worried about it being scratched from the sander because I intend to cover it all in white and black vinyl wrap anyway. So for this to cover and stick properly, the panel needs to be smooth and flat. Covering the whole area is for a couple of reasons; One, to cover the mess of the repairs; Two, to have the area that is under the edge of the windows to be black, to keep it as original as possible and also as these areas can look unsightly with dirt under the edge of them too.
Making the new top and bottom shelves.......
Here is the new top shelf constructed. I covered the top and bottom of it in Fablon and also cut out two large round holes at each end where a plastic insert goes into it that holds a screw to screw it to the side of the caravan. The new shelf obviously is the one left. There was a 30 degree angle on one edge of this shelf which I assume matches the front angle of the caravan. This was quite difficult to get right.
Here is the new bottom shelf constructed. I glued the beading moulded edge to the new shelf edge and then cover it all in Fablon. Again on this, there was a 30 degree angle on one edge of this shelf.
Damp front corner.......
I removed a part of the wallpaper to find damp from above and below and some parts of the side window frame rotten.
I tried to source the wallpaper or the wallboard but couldn't find it anywhere as this caravan was from 1994 which is over 20 years old already.
Therefore I had a genius way of getting some - steal some from another part of the caravan.
Behind the seats were two boards keeping the back cushions off the actual caravan wall to stop damp in the upholstery. These were the same wallboard that has a kind of peachy or salmon colour that has a mottled effect.
Here is the finished board behind the seats after I stole the board to use for wall board to use in that front corner of the caravan.
I deconstructed these as they had a small wooden frame on. I bought some plywood the same thickness and made some new boards for behind the seats and covered them in fablon in oak wood colour. I'm very impressed with how original I have made them look.
Here you can see the little wooden frame behind the board that I had to put back after stealing it to use as the wall board.
Awning rails removal and resealing......
I took off the awning rail on that side and as expected it just fell off as the mastic/sealant had had its day, hence the inside wallboard being rotten inside. I needed to replace that piece of wallboard. As I said before I used the wallboard from the panels attached to the wall behind the back of the sofa area as you can see in the pictures above.
Constructing and installing the new front window frame.......
Here is the new frame constructed in pieces ready to install. I decided to make the frame more robust than was there before. I also elected to give the joints only a half join into the top and bottom parts of the new window frame, so that these top and bottom parts of the frame were kept stronger as a result. The old frame had the joints all the way to the top of the wood. In my opinion this would have weakened the structure.
Now the frame is fully installed, and I did this by gluing and screwing it all together.
You see all the corners of white plastic and also the bottom of the front left and right windows, well these need filling in with wood. Originally it was a small baton of wood and a little bit of polystyrene. However I just did it with wood as it would be too much hassle for me to do that. Also the corners of the windows originally had "plastic shaped corners", however again I decided to used wood. I penciled the shape onto a scrap of wood from the frame and cut them using a ban-saw. I have now fully done this but forgot to take a picture before I installed the window frame wallboard.
Left window pictured here.....
Centre window.
Right window.
I also countersunk vertical holes going upwards to screw the upper frame bar to the structural frame above the window frame. You can just about see if you look carefully numerous holes doing this in the pictures of the window frame. They look like chunks taken out along the top frame there.
See the gap behind the white front panel at the bottom of the Windows, well this will need to be filled in with more wood.
Here is a box full of all the left over wood, plus the old window frame and the top shelf all chopped up into bits. I gave this to my Mum and Dad for them to burn in their log burning fire in the lounge back at their home.
Cutting and installing the new front window wallboard.......
Here is the plywood wallboard we made for the front window. I made it by cutting a large piece to the correct size and placing it inside the caravan. Then from the outside I drew a line round the frame of the windows. Then we cut these with a jigsaw very, very carefully. I had to be extremely careful and diligent cutting this with the jigsaw as it was very flimsy once even one window is cut out, especially those very thin outside edges of the side windows.
I installed the front window wallboard with wood glue and then staple-gunned it to the frame. Once dry I used a load of tack nails to make sure it stays in place. The staples were very good, but thy weren’t adequate enough as it was very difficult to get glue in behind the wallboard without it dripping everywhere. I could have used no-nails in a gun form to squirt it in, but I wanted to use Evostik Exterior Adhesive Wood Glue as I had used on the frame. This is really good wood glue and had never failed me in the past.
You can see round the bottom of the left and right window where the new wooden frame was "filled in" with wooden inserts before the new wallboard was fitted to the window frame. This is so the new wallboard would fit perfectly.
I then covered the wallboard in Fablon wood-effect, you can see this below. This was really easy to do, but had to be done in little pieces. Before I installed the window wallboard, I fitted the two side window corner panels and trim. Luckily this small piece of wallboard wasn't rotten, but had to be glued to firm up the wood in places.
Next will be to fit both the upper and lower shelves.
UPDATE : A few years later than this.... I opted to remove this fablon sticky back plastic from the inside of the front window area as some was starting to peel away in areas due to natural condensation making it come unstuck. Also I didn't want the wood behind to even be a little bit damp, so now with it removed, if it does get damp from the same condensation, then at least it has chance to dry out as it is not covered in plastic which would keep the moisture in causing more damp and mould. I then used teak oiled it instead to give it a colour.
The following photos are after sanding the front panel, to make it smooth ready for an aluminium panel to be installed covering the front window frame from the outside.

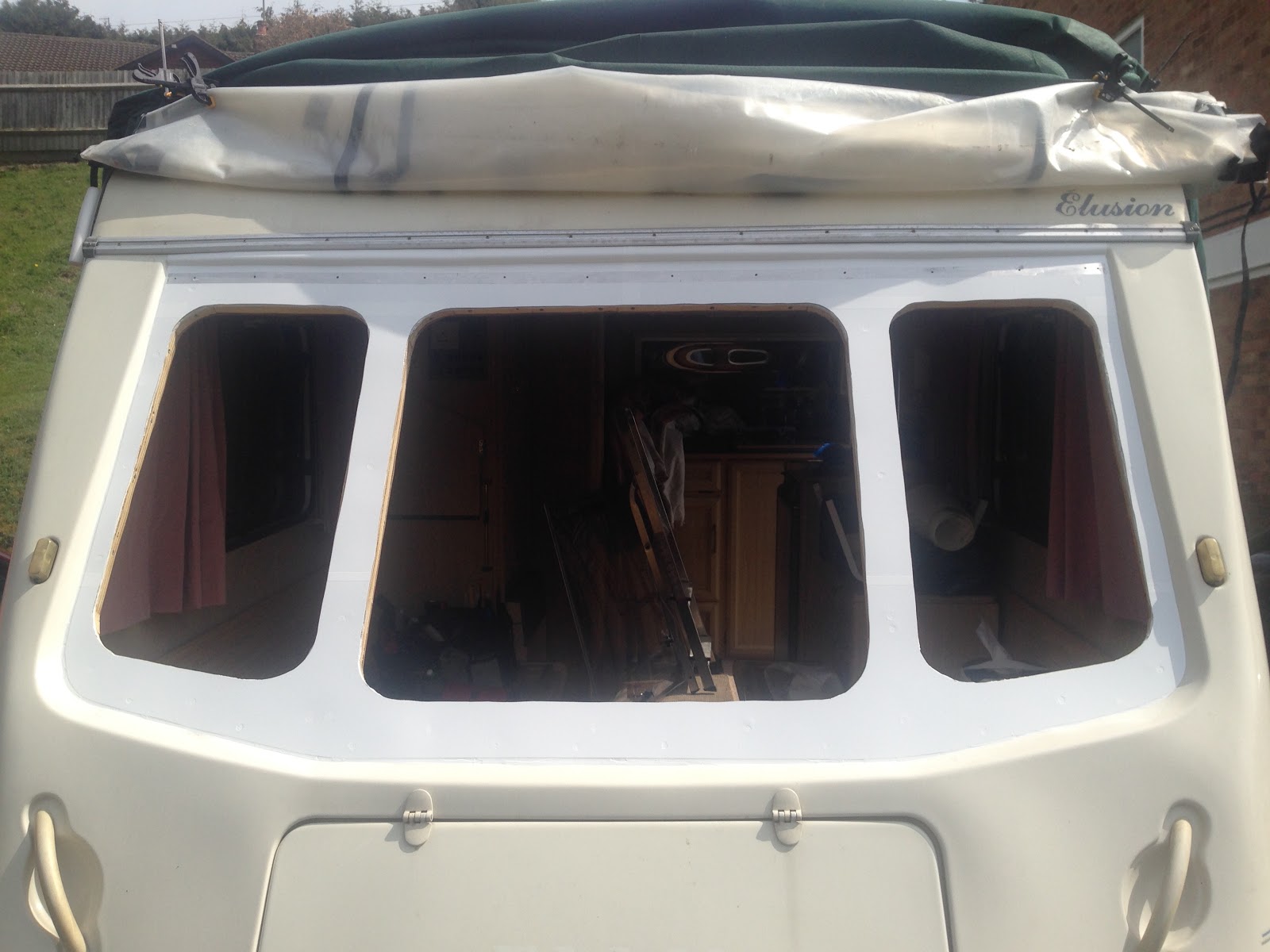

This is the front panel sanded down flat.
I glued it into place using Soudal Fixall and drilled holes and countersunk them and added screws to make the front window frame very strong as the plastic front windows are actually quite heavy.
The aluminium panel was also held with grippers holding it tight on overnight until it was dry and fully stuck on properly. I then the following day carefully filled in the screw holes with the sealant and also put some sealant round the edges and smoothed it off very carefully with a tool to achieve a perfectly level finish as you can see below. ready for applying the white and black vinyl wrapping plastic.
I put the front top rail on the caravan. It joins the aluminium roof to the plastic front panel. You can see what I used to stick this on with later on (it is screwed on as well).

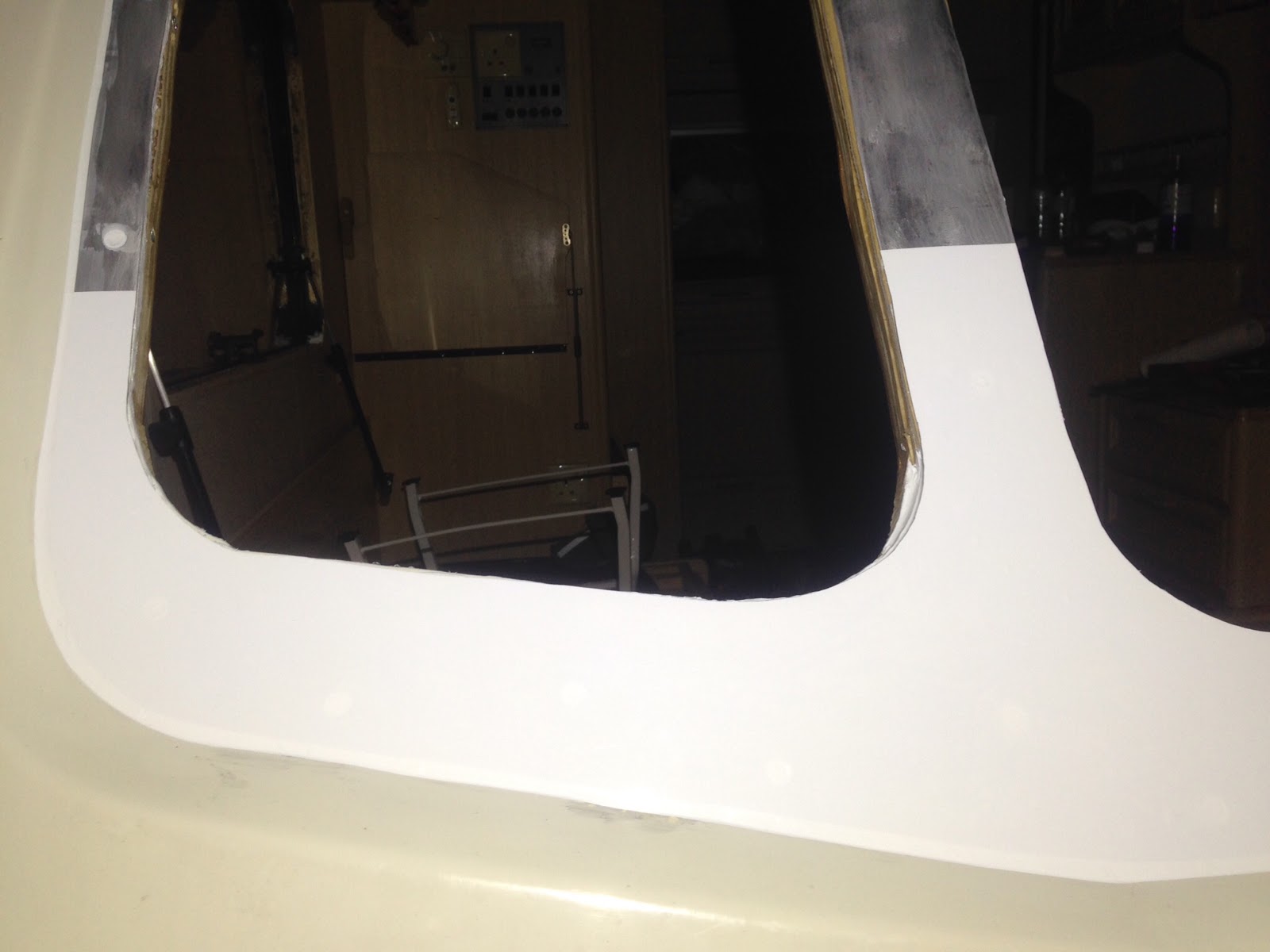

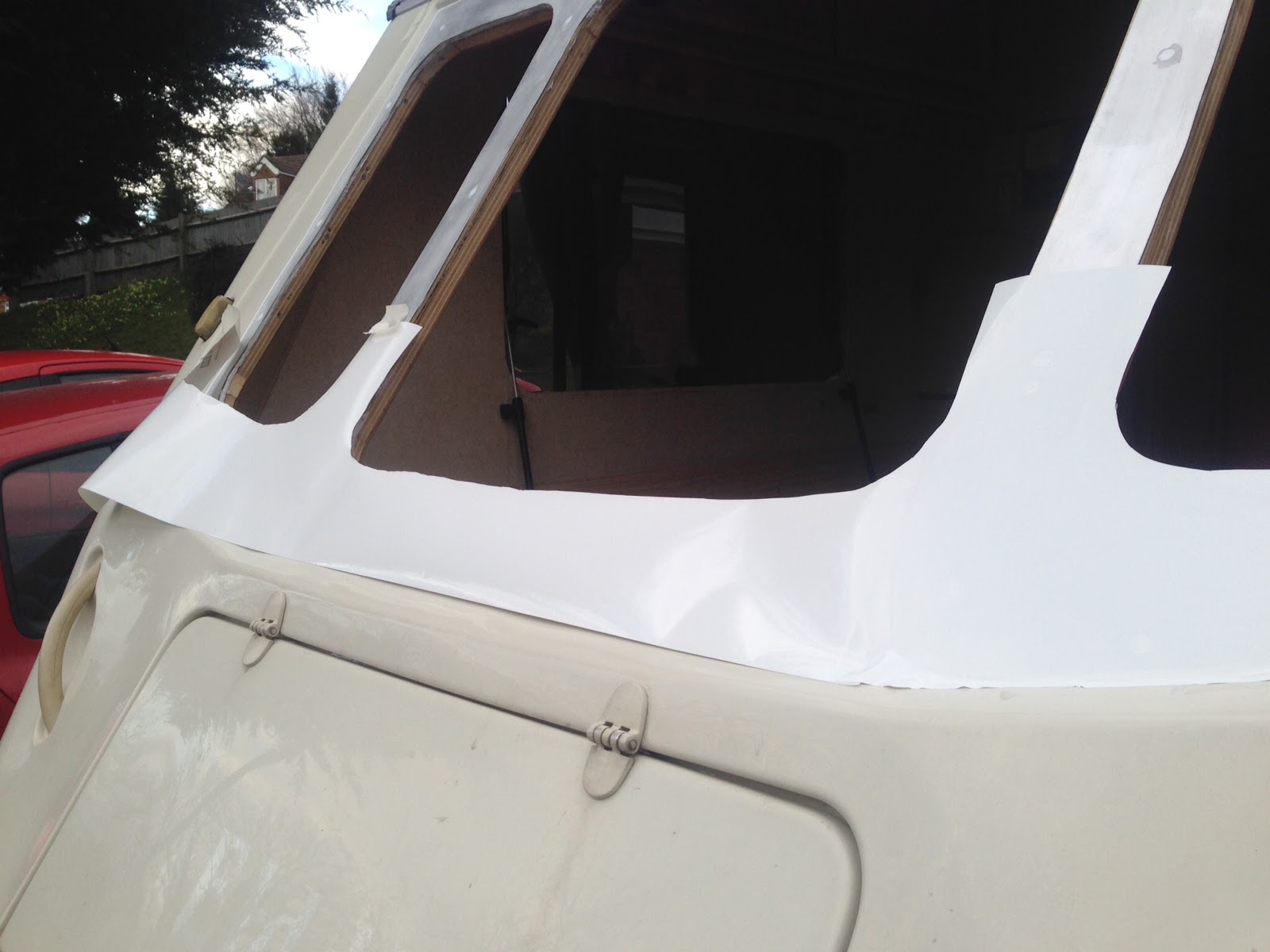

I then bought some of the sticky back plastic vinyl wrap that companies "wrap" vans and cars with. I bought the most expensive stuff that was rated to last 10 years.

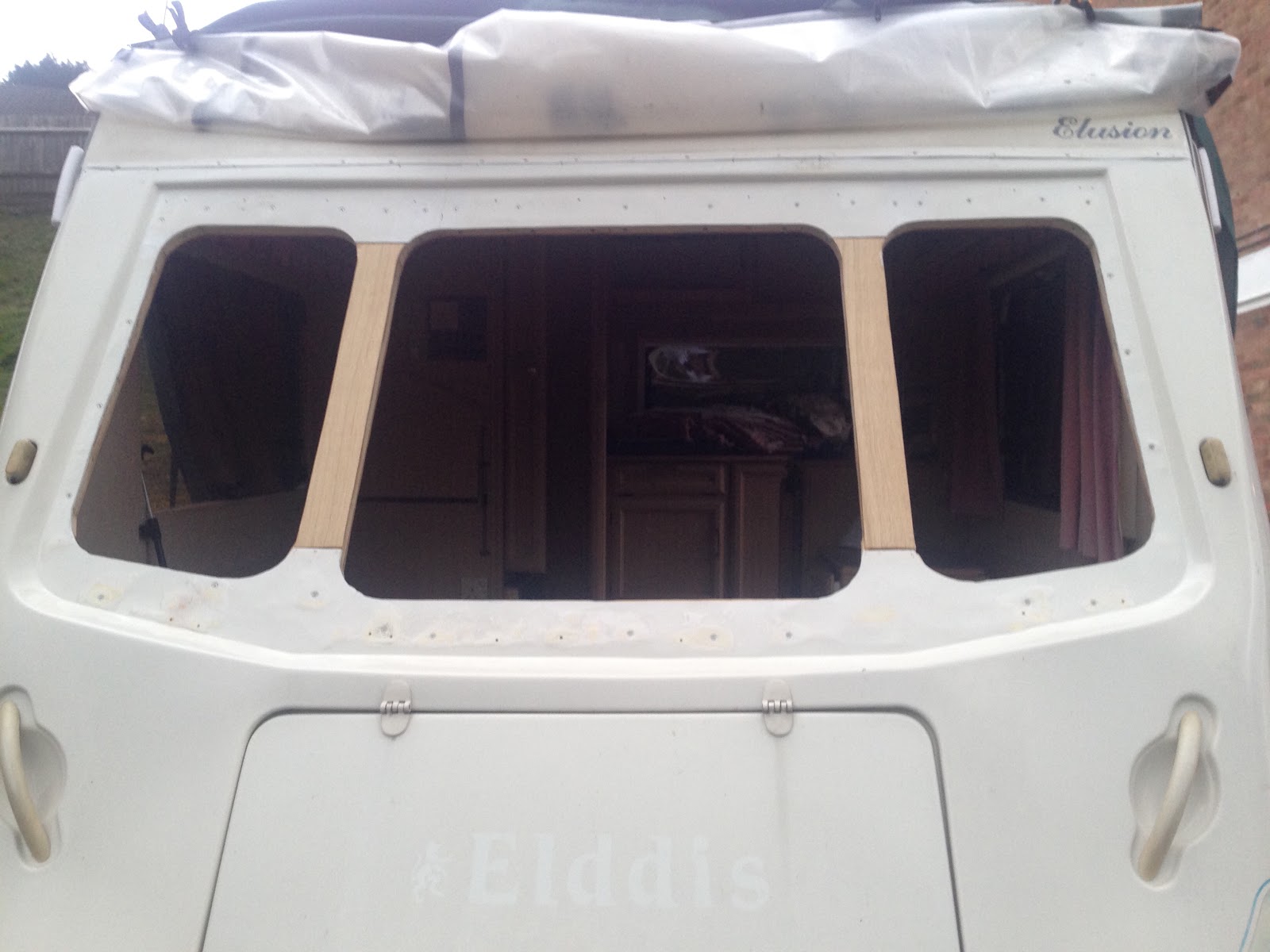

I later added black vinyl wrap to the 2 middle struts of the windows to keep it as close to the original as I could. Especially as the white can stand out as the whole caravan is like a beige or off white, which of course was impossible to find in vinyl wrap.
Above is the W4 non-setting mastic being put on the back of the clean window hinge rail. The window hinge rail was then put on and screwed in place.

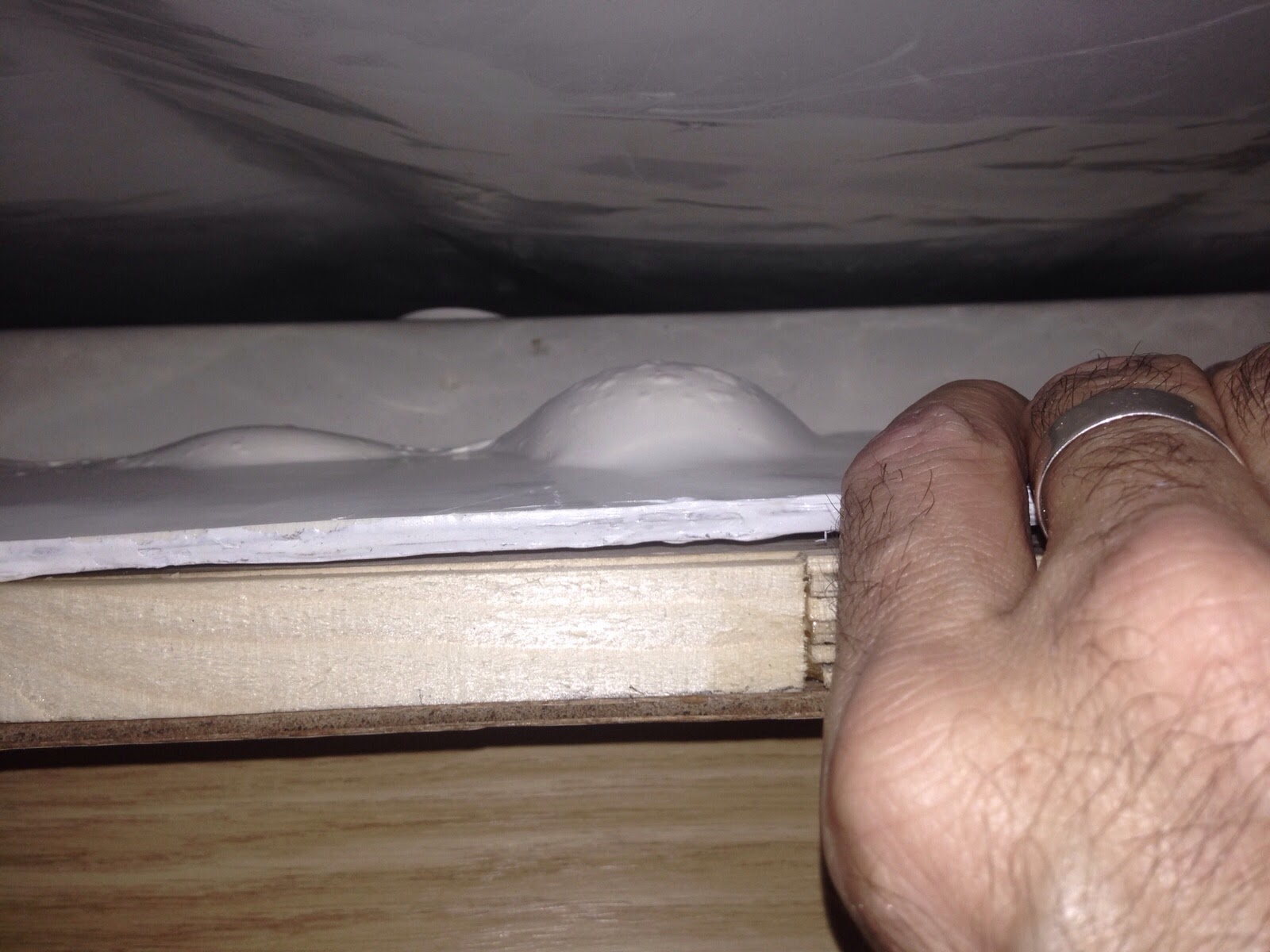

Below I put some Soudall in the gap and under the plastic of the front panel to help seal the gap to ensure the caravan never leaks again and to help keep the front panel structurally sound with the rest of the caravan. The W4 non-setting mastic on a roll will be used behind the awning rail but I wanted the place where the awning rail goes to be totally flat as before this there was a gap.
More damp.......Rear this time

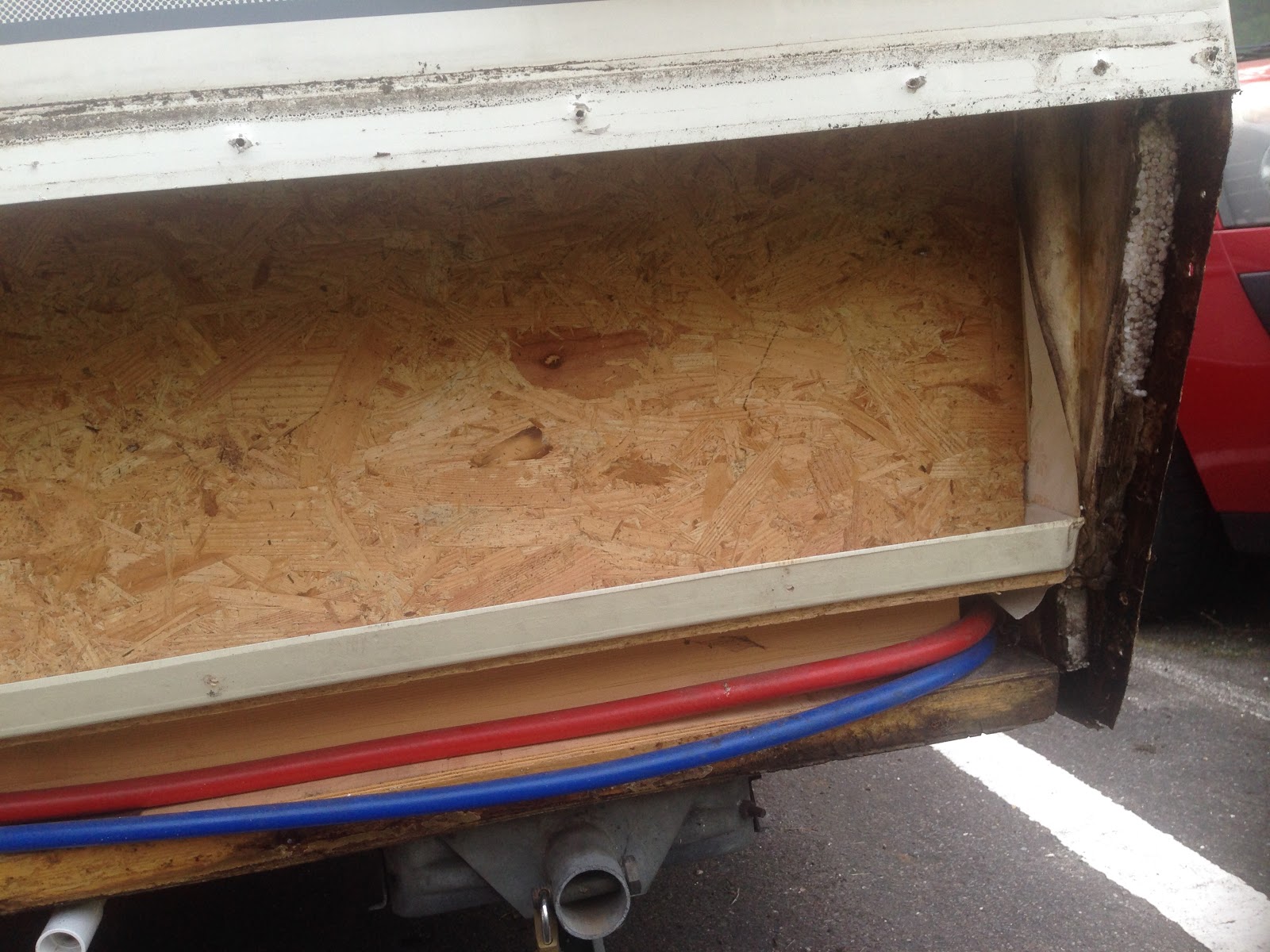

I had to take the rear panel off as there was lots of damp here as well. This was due to the rear lights and the rear handles letting water in behind them.
Left side where you can see the frame completely disappeared and you can see the holes in the exterior aluminium where the awning rail goes.
The same on the right side too the toilet is behind the wooden panel.
As you can see the interior ply completely destroyed by damp.
This is the exterior of the rear lower panel I took off.
I made a frame and glued it in with Soudal Fixall High Tack. I then used the same to stick on the ply.
You can see the frame here before I glued on the last bit of ply. The rear frame was glued in with Soudal Fixall High Tack.
Rear panel ready to go back on.
Getting awning rails ready to go back on :
I managed to clean up the awning rails after removing them. The W4 mastic on a roll sealant was relatively easy to clean off. However it took forever to get it all off. The sealant that seems like it was something like Soudal Fixall High Tack (or other similar equivalent) that was also used in some places, well this was very difficult to get off. I persevered and got it off.
I used white spirit to dissolve the W4 mastic on a roll when cleaning them up. However before adding the new W4 I used Methylated Spirit to clean off the oily residue left behind by the White Spirit. This also has to be done when cleaning the place on the caravan where the rail is going on.

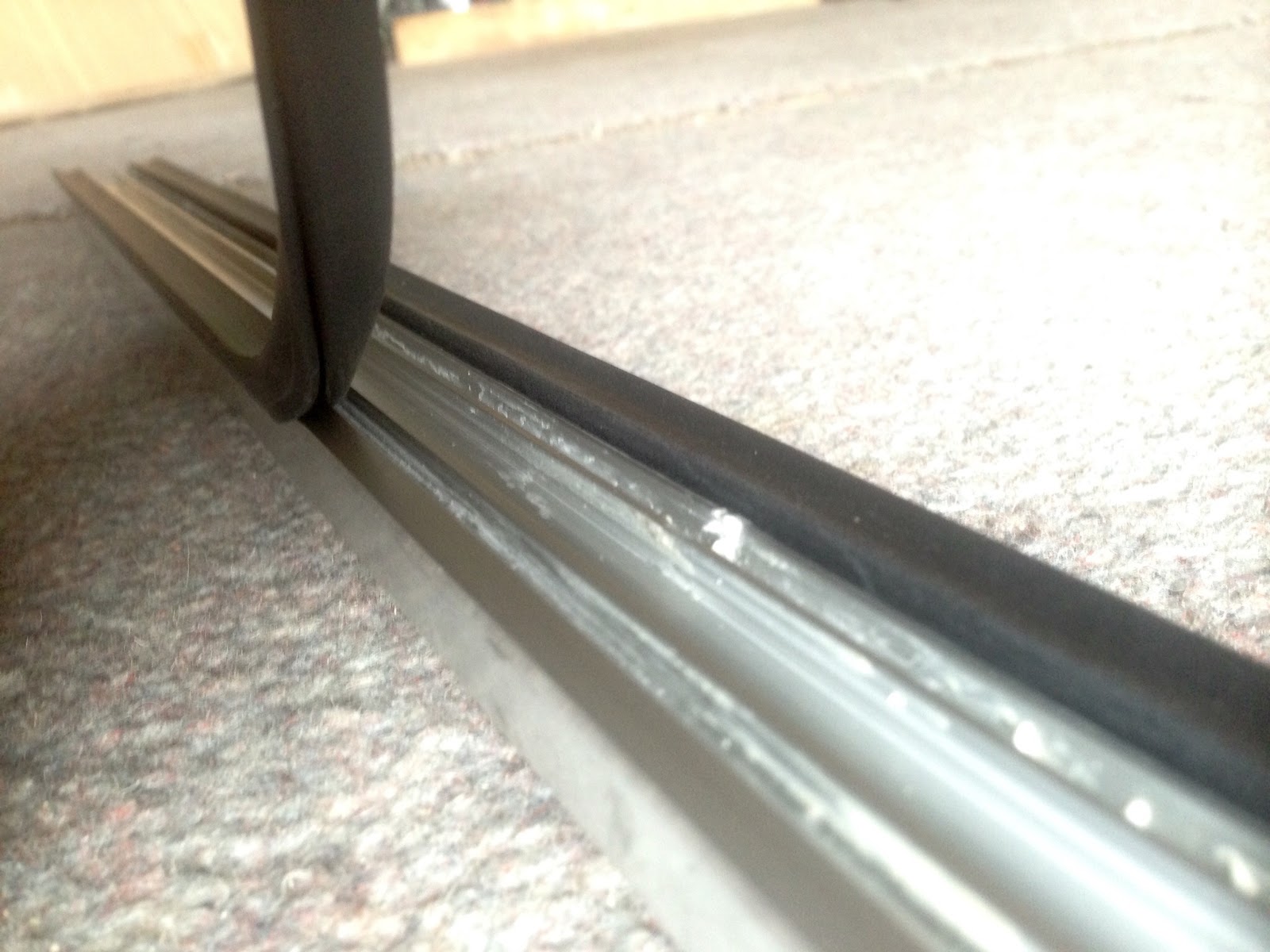

The rubber strip that goes on the top and bottom of the awning rail was all broken from the removal off the caravan and filthy with all types of sealant, so I bought a load more online. I had used a screwdriver to aid the fitment of this in a few areas on the back of the awning rail, however mostly it just pushed in easy enough.
Previously to this I had put Soudall Fixall High Tack over the areas where the awning rail was going. Basically where the caravan aluminium roof is folded over the edge of the sides of the caravan. I did this as I wanted to be sure no water could ever get in. Originally there was just the W4 mastic on a roll underneath these joints and over time this dries up and becomes defective. So this area has been in the elements getting dirty while I was fixing the caravan up. It needs cleaning before I put the awning rails back on.
I therefore cleaned up the area on the caravan in the same way above with White Spirit first and then afterwards Methylated Spirit. White Spirit to dissolve grease and dirt, then Methylated Spirit to dissolve and clean the oily residues left over from the White Spirit.

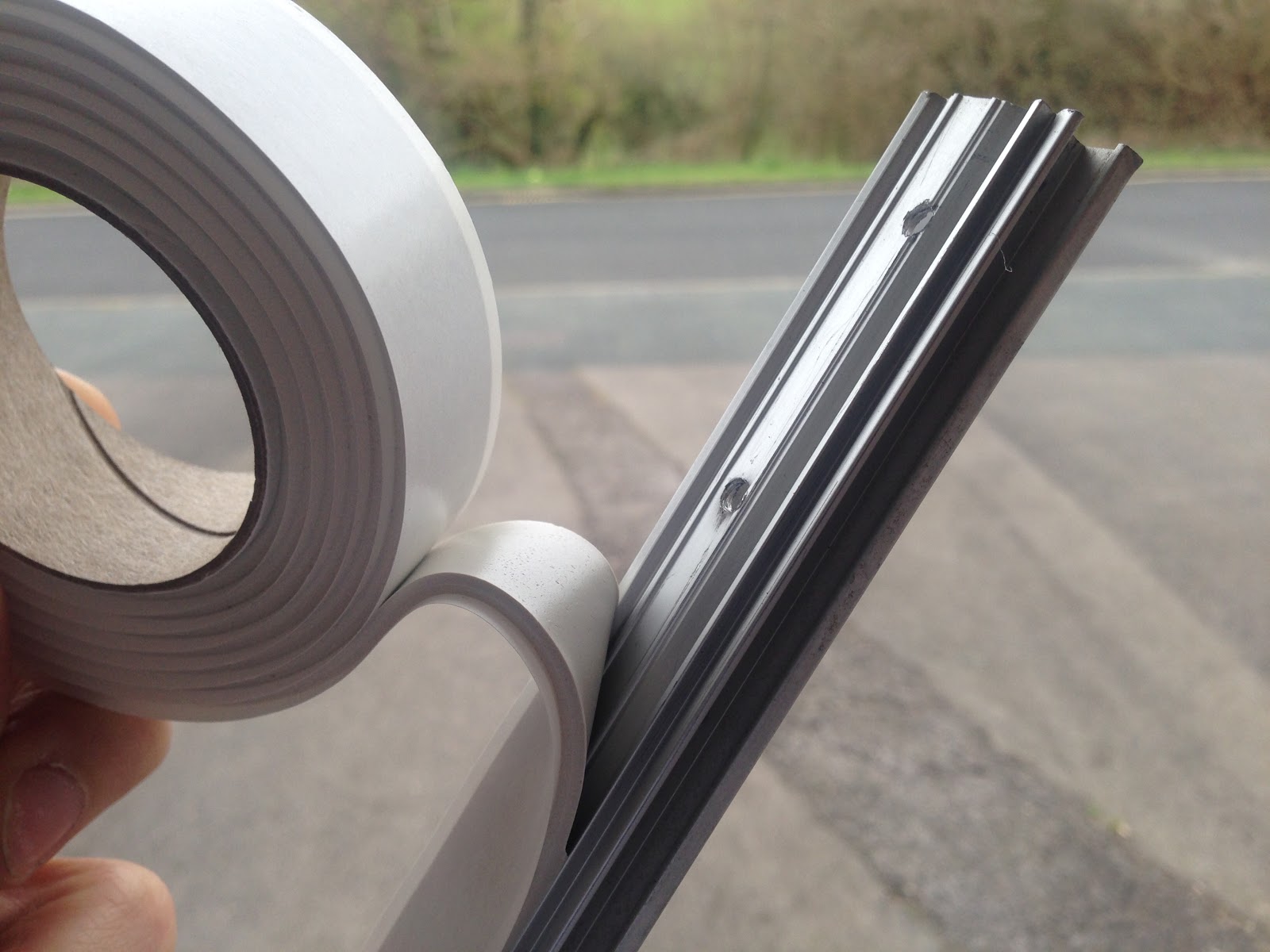

I then added the W4 mastic on a roll to the centre of the awning rail between the awning rail rubbers. The width I bought actually touched the inside edge of the rubbers so I was happy I bought the correct one. I then added Soudal Fixall High Tack to the back of the rubbers to ensure no water or dirt can get in behind. The old rubbers did not have this behind and as a result they were absolutely filthy and the water and dirt had dried the W4 sealant strip out and the awning rails almost fell off in my hand when I took out the last screw when I was removing them.
Here is a picture of the awning rail ready to go back on.
Now here is the awning rail fully fitted. All the Soudal squeezed out the edge and in some places so did the W4 mastic on a roll. I cleaned this all off, which took me forever, by scraping with a plastic scraper (it MUST be plastic scraper as the paint is very thin and also the aluminium is very thin). I then rubbed the residue off with kitchen towel from the aluminium roof and sides and also off the new awning rail rubbers. I've gone through loads of kitchen roll as this Soudal stuff is very, very sticky, also the same with latex gloves too; which are needed as you can instantly clean your hands by removing a stick set of latex gloves with a new pair.
This was one of the only times when I needed an assistant to help me hold the awning rail away from the caravan as I put in one screw. The others had to be held away so that it can be correctly lined up with the old holes. This was an extremely tiring task for the holder and the person screwing the screws in. Thankfully I was using an electric screwdriver. I did however use a manual screwdriver to turn the last few turns as electric ones tend to go nuts towards the end of screwing and can totally chew up the screw head, and then you can't remove it or tighten it. So be careful with an electric screwdriver.
As you can see the side awning rails come in 2 parts, front and rear. I managed to get both the front left side and front right side ones installed fully today. From this point caravan was literally one or two days away from being completed. Basically once the rear part of the awning rails are put on both sides then we can use it.
Can't wait for our first trip away !
-----------------------------------------------------------------------------------
IT'S DONE - YIPPEE !!! - First trip soon
-----------------------------------------------------------------------------------
Well there it is all repaired and the caravan all ready, so we headed away for our first ever trip away in it. This photo was taken on 7th October 2016 which was my 39th Birthday (I'm Kevin on the right and that's my Partner Craig on the left). It was a short trip but we just wanted to get away in it for the first time. We headed to the Chertsey Camping and Caravanning Club Site for a night and then off to the Graffham Camping and Caravanning Club Site for two nights.
All set up in Chertsey Camping and Caravanning Club Site.
My 39th Birthday away on our first night in the Caravan.
All set up in at the 2nd campsite of the trip at the Graffham Camping and Caravanning Club Site. Lovely site all in a forest.
Heading home after the first ever trip away in the caravan after all my intensive renovations to it.
Back home after the first ever trip. Was amazing to be away in our first ever Caravan.-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
We had many trips over the 11 years of ownership of this caravan to Brighton, Devon, Cornwall, Lake District, Norfolk, Bournemouth and many more.
However, the most epic trip we ever has was when we went on a road trip in France with it. I did all the driving and we didn't use any toll roads to make the journey cheaper. We travelled a total of 2200 miles in 2 weeks in July/August 2017. We stopped off at many places on the way there and back. The furthest place was Port Grimaud near to St. Tropez, and we stayed at a Campsite there called Camping De La Plage, which was actually on the beach. Pictures below.
Itinerary was :
PARIS
LYON
NICE
PORT GRIMAUD - near St. Tropez
MONTPELIER
CLERMONT FERRAND
PARIS
We booked the campsites on the way totally adhoc depending on how long we wanted to drive in one day.
Here are some pictures of the awesome trip we had :
Arrived in Paris !
Up in the mountains at Saint Andre les Alpes
Up in the mountains at Saint Andre les Alpes
Few nights in Nice.
Nice
Camping on the actual beach at Camping De La Plage near Port Grimaud which is close to St. Tropez.
Camping on the actual beach at Camping De La Plage close to St. Tropez.
Camping on the actual beach at Camping De La Plage close to St. Tropez.
Heading home and we drove with the caravan over the stunning Millau Viaduct Bridge which was absolutely awesome. It was the only toll we used on the whole trip. I was super excited to drive over this bridge as its a fantastic looking bit of engineering and is so high up.
Ferry Home (August 2017)
------------------------------------------------------------------
Our last trip away in this Caravan :
A trip to the Bournemouth area staying at Holmsley Caravan and Camp Site.
------------------------------------------------------------------
Final Update :
I eventually sold my trusty little super reliable 2006 automatic Honda Jazz after having her for 15 years and in March 2023 I bought a 2020 automatic Honda HR-V which can tow more.
We decided in October 2025 to buy a newer and slightly bigger caravan. We still kept to the Elddis brand as we wanted a light caravan to tow and the Xplore models from Elddis are very light caravans.
So we bought a 2012 Elddis Xplore 304 (in October 2025). It's slightly heavier, and slightly bigger with a bit more room inside and a few more mod cons and useful updates than the 1994 Elddis Elusion 350/2.
We will still call this new to us caravan "Eileen the Elddis" (Mark II though) after my maternal Nan who passed away in 2017, so her name and memory, and also the old caravans memories for us can both still live on with us making even more memories with the new caravan.
Here's to more adventures making memories in another Elddis Caravan. "Eileen the Elddis" (Mark II).
Our New caravan - 2012 Elddis Xplore 304.
-----------------------------------------------------------------------------------
The 1994 Elddis Elusion 350/2 in this blog that I repaired and fixed the damp, will hopefully live on for a long time because I saved her well before the damp properly set in and stopped it finishing her off for good.
I also updated and maintained it very well over the 11 years we owned and used this caravan. I also improved it in many ways to be way better than the original design, and I did ALL the following myself :
I added an Alko hitch stabiliser.
I replaced the brake shoes.
I replaced the fridge gas burner and the piezo manual igniter.
I replaced inlet, outlet and expansion overflow ports on the hot water tank before they broke through age.
I replaced all the microswitches on all the taps.
I fixed further leaks and water ingress that appeared over the years from places that I had not initially fixed at the beginning of this blog.
I fixed a window that cracked a bit.
I removed some fading and peeling decals (due to age) to tidy up the look and keep the clean lines of the caravan.
I installed 12V plugs for charging phones at the front.
I added an automatic light in the fridge and one in the wardrobe too.
I put quick release clips on the leisure battery so it’s easy to remove for keeping on charge inside at home.
I also changed almost all the lights to LED (internal lights and awning light).
The 1994 Elddis Elusion 350/2 I repaired in this blog was given a good thorough clean and in October 2025 was put up for sale. In the sale I included a brand new green "Protec" cover (that cost £325) to keep the pesky damp out, a full size awning, 2 gas bottles, a hitch style motor mover, leisure battery, wheel clamps and more, along with a box of spare bits and bobs left over from my repairs and renovations of the caravan.
I listed it on Facebook Marketplace and on Gumtree in October 2025.
We have owned, loved and used this caravan for many, many trips away for making memories on holidays and breaks away in the 11 years of ownership. It will always forever hold a special place in our hearts as our first ever caravan. Hopefully the new owner will enjoy it as much as we did.
I feel super proud that I saved it from the brink and that and it lives on !
I hope this blog inspires other people like me; people who love a bit of DIY and tinkering about, to save old damp ridden caravans from the brink and bring them back to life.
HAPPY CARAVANNING ! - from Kevin and Craig
